Precast concrete construction offers several key features such as dimensional accuracy, better finishes, and faster erection which are absent when other method of concrete construction is considered. This article highlights features of precast concrete construction.

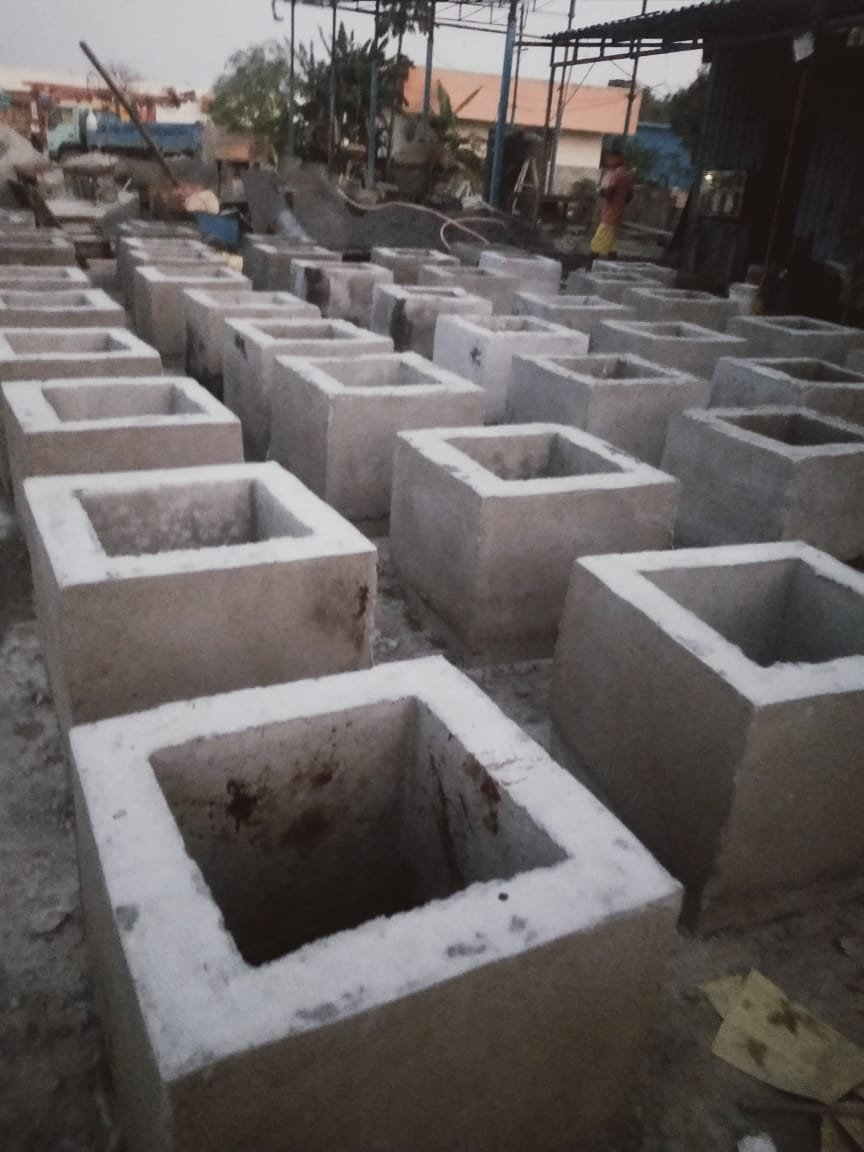

Dimensions |
---|
(600 L * 600 B * 600 Height upto 2mtrs) wall thick 150mm / 8mm and 10mm Rods 100mm space on both sides |
(900 L * 900 B * 600 upto 2mtrs ) wall thick 150mm / 8mm and 10mm Rods 100mm space on both sides |
(1200 L * 1200 B * 600 upto 3mtrs ) wall thick 150mm / 8mm and 10mm Rods 100mm space on both sides |

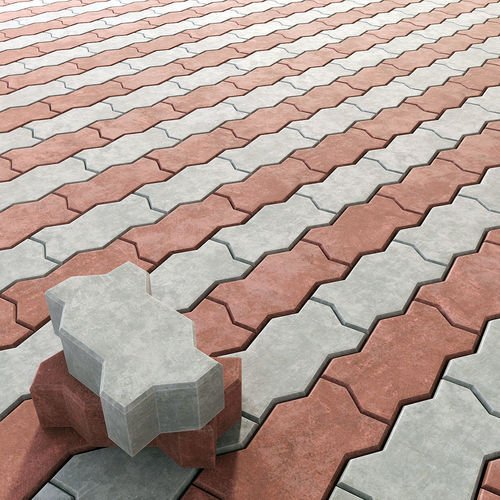

our wide range of interlocking paver and paving blocks find extensive application in various offices, gardens, residential and commercial complexes. We are leading under the able guidance of our owner. His rich industry experience and encouraging support to our team and excellent management capability assist us in achieving organizational goals.! Industrial and Matt finish pavers are available in 60 to 100mm thickness. Which are manufactured using quality raw material and have strength up to M-50. They are strong and suitable for go downs, Industrial estates, factories, warehouses etc.
SIZE | Dimensions |
---|---|
Shape Paver | M30, M40, M50 GRADE IN (60/80/100)MM |
Rectangle | (200 x 100 x 60/80/100) MM |
Plexi Paver | (450 x 400 x 65) MM |
Zigzag | (225 x 112.5 x 60/80/100)MM |
I Shape | (200 x 112.5 x 60/80)MM |
Square | (200 x 200 x 60)MM |

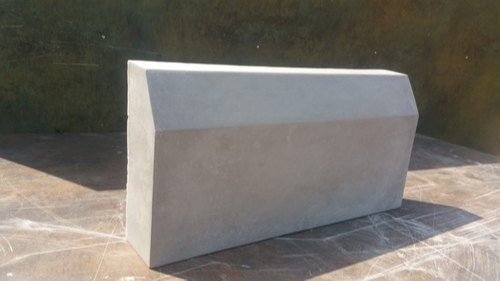

we offer Quality KERB Stone used for pleasing to the eye the manifestation of the area beside road, edges of footpaths, pavements, platforms, retaining edges and garden periphery. We manufacture these quality KERB-Stone using supreme quality raw material concrete and sophisticated methodologies. These are highly in style among our clients for stunning looks, fashionable designs and fabulous patterns. These products clients can avail from us at affordable price.
Code | A | B | C | D | E | F |
---|---|---|---|---|---|---|
KB-1 | 600 | 300 | 125 | 50 | 100 | 220 |
KB-2 | 450 | 300 | 150 | 50 | 90 | 325 |
KB-3 | 450 | 300 | 100 | 45 | 70 | 230 |
KB-5 | 450 | 450 | 150 | 80 | 90 | 380 |

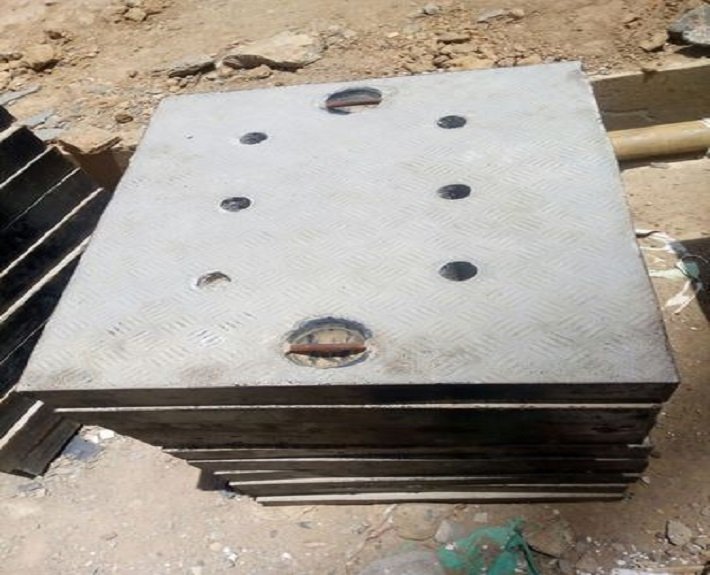

A manhole cover or maintenance hole cover is a removable plate forming the lid over the opening of a manhole, an opening large enough for a person to pass through that is used as an access point for an underground vault or pipe. It is designed to prevent anyone or anything from falling in, and to keep out unauthorized persons and material. Ancient Roman sewer grate made out of lime sandstone, 1st century AD, excavated at Vindobona (present-day Vienna) Manhole covers date back at least to the era of ancient Rome, which had sewer grates made from stone.
Product Code | Clear Opening MM | Frame Dimension MM | Cover Dimension MM | Weight MM |
---|---|---|---|---|
MH-1 | 600x600 HD | 900x900x150 | 750x750x75 | 225 |
MH-2 | 600x600 MD | 800x800x100 | 700x700x50 | 100 |
MH-3 | 600x600 MD SUMP | 800x800x100 | 700x700x50 | 105 |
MH-4 | 600x600 MD RWH | 800x800x100 | 700x700x50 | 105 |
MH-5 | 600x600 LD | 750x750x75 | 670x670x35 | 78 |
Product Code | Clear Opening MM | Frame Dimension MM | Cover Dimension MM | Weight MM |
---|---|---|---|---|
MH-6 | 600x600 HD | 750x750x150 | 600x600x75 | 150 |
MH-7 | 600x600 MD | 650x650x100 | 550x550x50 | 80 |
MH-8 | 600x600 LD |
600x600x70 | 500x500x35 | 45 |
MH-9 | 600x600 LD |
390x390x70 | 310x310x35 | 22 |
MH-10 | 600x600 LD | 425x425x70 | 350x350x35 | 26 |
Product Code | Clear Opening MM | Frame Dimension MM | Cover Dimension MM | Weight MM |
---|---|---|---|---|
MH-11 | 600x450 MD | 800x650x100 | 700x550x50 | 90 |
MH-12 | 600x450 LD | 780x645x75 | 680x530x37 | 65 |

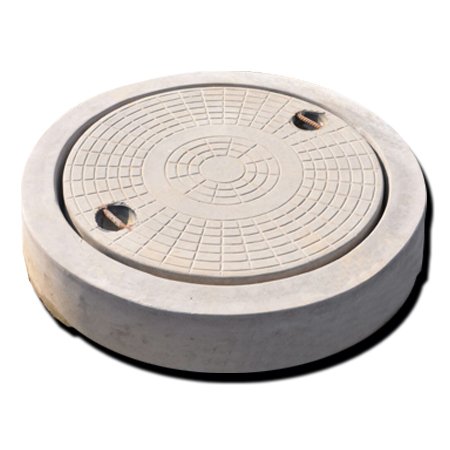

MH-13 | 450 DIA HD ROUND | 750x165 | 600x90 | 130 |
MH-14 | 600 DIA MD ROUND | 900x165 | 750x90 | 200 |
MH-15 | 600 DIA MD ROUND | 800x100 | 700x50 | 90 |
Product Code | Clear Opening MM | Frame Dimension MM | Cover Dimension MM |
Weight MM |
---|---|---|---|---|
MH-16 | 750x750 HD | 1050x1050x150 | 900x900x75 | 315 |
MH-17 | 750x750 MD | 950x950x100 | 850x850x50 | 150 |
MH-18 | 900x900 HD |
1200x1200x150 | 1050x1050x75 | 415 |
MH-19 | 900x600 HD |
1200x900x150 | 1150x750x75 | 300 |
MH-20 | 900x600 MD |
1100x800x100 | 1000x700x50 | 150 |

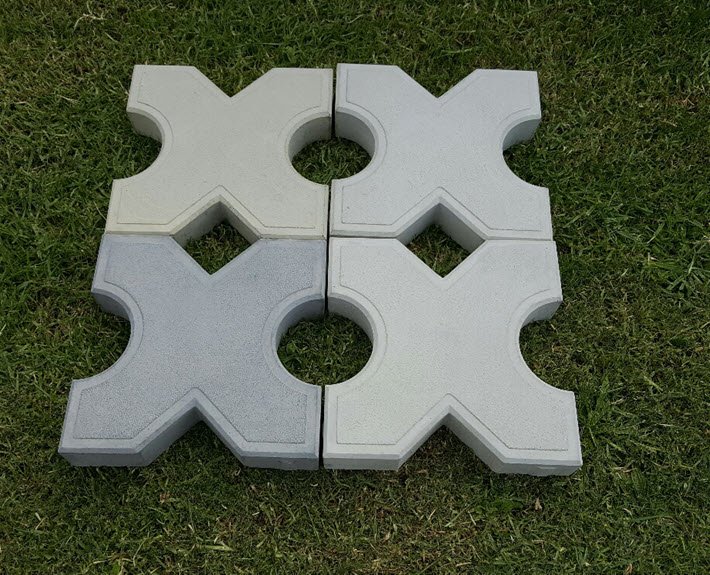

Grasscrete is commonly known as Void Structured Concrete. The pervious nature of the product is not reliant upon a mix design but rather a mechanical system to incorporate the voids in a highly defined and regular mannerns. Grasscrete® is an environmentally friendly solution for your emergency vehicle access, water management and traffic applications.
600 x 300 75 mm
600 x 400 x 70 mm
7' x 4' x 4' ---- 9' x 4' x 4'
230 x 110 x 75 mm

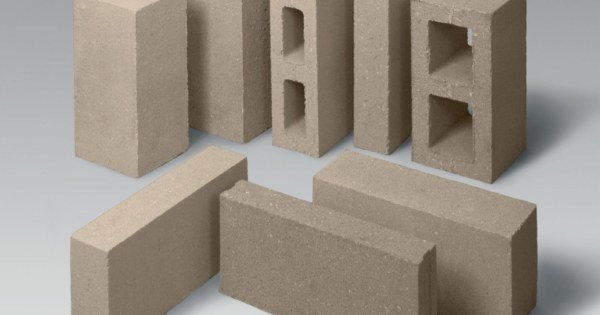

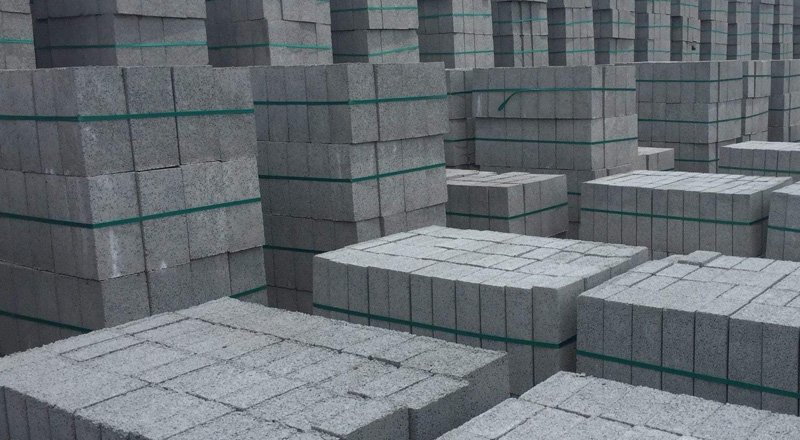

A concrete block is primarily used as a building material in the construction of walls. It is sometimes called a concrete masonry unit (CMU). A concrete block is one of several precast concrete products used in construction. The term precast refers to the fact that the blocks are formed and hardened before they are brought to the job site. Most concrete blocks have one or more hollow cavities, and their sides may be cast smooth or with a design. In use, concrete blocks are stacked one at a time and held together with fresh concrete mortar to form the desired length and height of the wall. Concrete blocks are durable, strong and heavy to handle, ideal for constructing walls and load bearing walls. Solid concrete block size varies typically from 4 inches to 8 inches. They are eco friendly, reduces construction time & less water usage. Choose from multiple brands cement concrete blocks at right price
SIZE | Dimensions |
---|---|
8 | M 5 Grade ( 400 L * 200 B * 200 H )MM |
6 | M 5 Grade (400 L * 150 B * 200 H )MM |
4 | M 5 Grade (400 L * 100 B * 200 H )MM |
